McCall Refrigerator Parts Freezer Parts

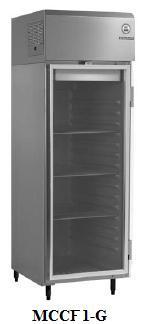

McCall Single Section Self Contained Glass Door Reach-In Freezer

Model MCCF1-G or MCCF1-GH (Half Doors)

PDF Specs Owner/Instruction Manual

Self-Contained Glass Door Reach-In Freezer
The McCall Series 1 provides the customer with a high performance in every type of
environment and extremely durable construction all while using very little energy.

Every detail is engineered for functionality, from the removable top mounted
refrigeration system to the “ACT” control providing a more reliable and superior
performance. The McCall Series 1 is a perfect fit for any work environment.

Energy Efficiency Rating
Energy Use : 11.29 KWh daily

Product Features:

Aluminum interior and exterior, stainless front
Built in door locks with heavy duty strikes
Pressure relief valve is standard to prevent door vapor lock
Exterior dial thermometer
Easy to use electromechanical control
Key lock shroud for easy access to refrigeration system
Three epoxy coated wire shelves per section
10' attached cord and plug on 115v units
6" adjustable stainless steel legs - shipped loose for installation in field standard
Energy savings door heater switch
Environmentally friendly foam - high density foamed in place environmentally
friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential),
Non GWP (Global Warming Potential) polyurethane keeps energy costs low
One year parts and labor warranty
Five year compressor warranty

Technical Specifications:

Width x Depth x Height	29" x 34" x 811/8" (73.66 cm x 86.36 cm x 206.06 cm)
Weight	441 lb (200.0376 kg)
Power Output	11.5 Amps
Exterior	Models shall have corrosion resistant aluminum on exterior cabinet sides and will have stainless front and shroud.
Interior	Cabinet interior shall be heavy gauge aluminum. Bottom and top surfaces shall be die stamped to provide radius corners and recessed floor. Three epoxy coated wire shelves are provided per section. Shelves rest on clips which are adjustable on 1" increments on stainless steel pilasters affixed to the cabinet interior. Pilasters are removable without tools for cleaning. Mounted to the interior ceiling, the interior fluorescent light is controlled automatically through a switch mounted in the hinge assembly to protect against breakage. An air duct shall be mounted to the ceiling assuring low velocity, even air movement throughout the cabinet interior.
Doors	Double paned tempered thermopane glass. Constructed with a combination of extruded aluminum and PVC. Each door has two edgemount, self-closing, cam lift style hinges. Doors can be removed from the cabinet without the use of tools. Door handle is continuous along vertical dimension of the door. Door gaskets are magnetic and mount to the door, snapping in place and removable with out tools. Keyed door lock is mounted to the door. Lock engages into a heavy duty strike mounted to the cabinet face.
Refrigeration System	All components are mounted to the exterior of the cabinet ceiling, outside the cooling zone and are assembled as one piece and can be removed as one piece. Environmentally friendly R404A refrigerant is used. The system has the capability of maintaining between -5ºF and 0ºF in heavy use laboratory operations. Refrigerant is metered using a highly responsive thermostatic expansion valve. System is controlled using an electronic temperature control, which provides improved pull down times, reduces compressor cycling and longer compressor life with lower energy consumption. Control system uses adaptive defrost to assure evaporator coil is free of ice and is operating at optimum efficiency. Evaporator condensate is eliminated using an energy efficient hot gas system.
Electrical	Standard electrical on one section units shall be 115V, 60 Hz single phase. A 10' cord and plug is supplied and attached to a junction box mounted on the exterior top of the cabinet. Two and three section units shall be 115/208-230 and will require hardwire connections.
	McCall reserves the right to make changes to the design or specifications without prior notice.
