McCall 2 Section Hinged Door Value Cooler

Model MER49-G





Download McCall Specs PDF Specs Download McCall Manual Owner/Instruction Manual

Hinged Door Cooler
To fill out the McCall product offering, a line of
visual merchandisers has been added to the mix.
The MER series offers a high quality construction
and efficient operation without a high price. The line
ranges from 3 cubic feet to 67 cubic feet –
something for every application.

Product Features:

  • Built in door handle
  • Blue top header sign standard - other options
    available
  • Forced air evaporator for quick temperature pull
    down
  • Heavy duty hinges with automatic return
  • Attractive PVC frame
  • Double paned Low-e glass door
  • Three heavy duty shelves
  • Robust body with 2-1/4" thick walls, injected with
    CFC-free polyurethane
  • Exterior cabinet made of galvanized, pre-painted
    steel, with baked polyester paint
  • NSF compliant interior cabinet
  • Heavy duty condensing unit for R134a, located in
    front for easy-access maintenance
  • Forced-air condenser made of copper and
    aluminum, resistant to rust and saline environments
  • Reinforced 16-gauge steel base
  • UL compliant electrical components
  • One year parts and labor warranty and an
    additional four year compressor warranty
    (U.S.A./Canada only)

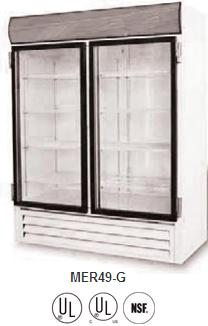

McCall MER49-G

Technical Specifications:

Width x Depth x Height 5913/16"  x 279/16"  x 7715/16" (152 cm x 70 cm x 198 cm)
Weight 577 lb (261.7272 kg)
Power Output 11.5  Amps
Exterior The exterior is constructed of galvanized, pre-painted steel, with a baked polyester paint. The base is reinforced 16-gauge steel.
Interior The interior is an attractive, NSF approved, white interior cabinet. It's robust body is constructed of 2-1/4" thick walls. The entire cabinet structure is insulated with high-density foamed in place CFC-free polyurethane. Innovative LED interior lighting design is protected by safety shielding. Three adjustable heavy duty coated wire shelves are provided.
Refrigeration System Forced air condenser is made of copper and aluminum, resistant to rust and saline solutions. The self-contained refrigeration system uses environmentally friendly (CFC-free) 134A refrigerant. It is located in the front of the unit for easy access. The refrigerant flow is controlled using a capillary tube. Forced air evaporator ensures quick temperature pull-down.
Door Extruded frame door is constructed with Low-E, double pane thermal glass. They are the latest in energy efficient technology. Each door has heavy duty hinges with automatic return. Handle shall be built in.
McCall reserves the right to make changes tothe design or specifications without prior notice.
