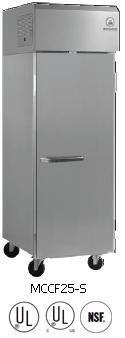

McCall Single Section Solid Door Reach-in Freezer

Model MCCF25-S or MCCF25-SH (Half Doors) .

PDF Specs Owner/Instruction Manual

Solid Door Reach-in Freezer
Manitowoc has re-engineered its McCall
Refrigeration line to cater to those operations that are looking for
dependable, energy efficient equipment that is competitively
priced. The McCall Series 2 features a top mount refrigeration
system, stay open doors for easy use, seamless ABS interior
liners for quick cleaning and durability and ability to hold 18” by
26” sheet pans. For those reasons coupled with the minimal
energy usage makes McCall Series 2 a perfect fit for any
application.

Energy Efficiency Rating
Energy Use : 7.78 KWh daily

Product Features:

Stainless steel doors and front shroud
Aluminum sides
Seamless, ABS interior liner
Top mounted refrigeration system
High performance refrigeration, designed to maintain -5ºF to 0ºF
Ships with casters mounted from factory (2&3 section units only)
Easy to adjust epoxy shelves (three per section)
Easy to read digital thermometer
10' cord and plug attached
Edgemount door hinges
Environmentally friendly foam insulation - High density foamed
in place environmentally friendly, Kyoto Protocol Compliant,
Non ODP (Ozone Depletion Potential), Non GWP (Global
Warming Potential) polyurethane insulation keeps energy costs
low
Environmentally friendly R404a refrigerant
One year parts and labor, 5 year compressor warranty, limited
lifetime liner warranty
Interior accepts 18" x 26" sheet pans
Self closing doors with stay open feature at 120º
Low profile metal door handles

Technical Specifications:

Width x Depth x Height	259/16" x 3211/16" x 791/2" (65 cm x 83 cm x 202 cm)
Weight	274 lb (124.2864 kg)
Power Output	9.0 Amps
Exterior	Top and bottom are constructed of 24-gauge galvanized steel. Exterior sides are 0.032 aluminum. Front housing is 22-gauge stainless steel.
Doors	Unit is provided with hinged solid front door(s). Door exterior is constructed of 22-gauge stainless steel. Interior door liner is formed gray ABS. Doors are provided with locks, magnetic gaskets, self-closing, edgemount hinges, and door handle(s).
Interior	Liner is constructed of seamless, one piece gray ABS material with 15 molded shelf supports spaced 3.00" (76mm) apart. Three epoxy coated wire shelves, rated at 250 lb. load capacity each, are provided per section. Liner comes with a limited lifetime warranty. Units are completely insulated with a minimum of 2.00" (5cm) high density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. Interior is lighted by one 40-watt incandescent light (by others) on one and two door models, and two 40-watt incandescent lights (by others) on three door models. Lights are located outside of the cooling zone. Door activated switches control the lights.
Refrigeration System	All components are mounted to the exterior cabinet ceiling, outside the cooling zone and are assembled as one piece and can be removed as one piece. Environmentally friendly R404A refrigerant is used. System has the capability of maintaining between -5ºF and 0ºF in heavy use laboratory operations. Refrigerant is metered using a highly responsive thermostatic expansion valve. On demand, evaporator defrost is automatic using a temperature initiated/temperature terminated system with electric heaters. System is controlled using an electronic temperature control, which provides improved pull down times, reducing compressor cycling and longer compressor life with lower energy consumption. Evaporator condensate is eliminated using an energy efficient hot gas system. Temperature is displayed with exterior digital thermometer.
Other	Unit is supplied standard with a 10' cord and plug, attached. 4" diameter casters with an overall height of 5" are mounted on the unit from the factory on self-contained models (2&3 section units only).
	McCall reserves the right to make changes to the design or specifications without prior notice.
