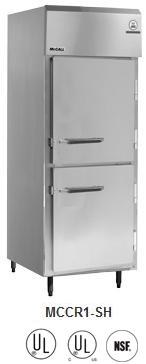

McCall Single Section Self Contained Solid Door Refrigerator
| Model MCCR1-S or MCCR1-SH (Half Doors) |
|
|
Self Contained Solid Door Refrigerator Every detail is engineered for functionality, from the removable
Energy Efficiency Rating Product Features:
|
|
Technical Specifications:
| Width x Depth x Height | 29" x 34" x 811/8" (73.66 cm x 86.36 cm x 206 cm) |
| Weight | 418 lb (189.6048 kg) |
| Power Output | 6.8 Amps |
| Exterior | Models shall have corrosion resistant aluminum on exterior cabinet sides and will have stainless front and shroud. |
| Interior | Cabinet interior shall be corrosion resistant heavy gauge aluminum. Bottom and top surfaces shall be die stamped to provide radius corners and recessed floor. Three epoxy coated wire shelves are provided per section. Shelves rest on clips which are adjustable on 1" increments on stainless steel pilasters affixed to the cabinet interior. Pilasters are removable without tools for cleaning. Mounted to the interior ceiling, the interior incandescent light is controlled automatically through a switch mounted in the hinge assembly to protect against breakage. An air duct shall be mounted to the ceiling assuring low velocity, even air movement throughout the cabinet interior. |
| Doors | Exterior shall be corrosion resistant stainless steel. Interior liner is a resilient high impact, easily cleanable ABS material. Each door has two edge mount, self closing, cam lift style hinges. Doors can be removed from the cabinet without the use of tools. Metal door handle is a low profile design minimizing impact with aisle space. Keyed door lock is mounted in the door next to the handle. Lock engages into a heavy duty strike mounted to the cabinet face. Door gaskets are magnetic and mount to the door snapping in place and are removable without tools. |
| Refrigeration System | All components are mounted to the exterior of the cabinet ceiling, outside the cooling zone and are assembled as one piece and can be removed as one piece. Environmentally friendly R404A refrigerant is used. The system has the capability of maintaining between 27�F and 40�F in heavy use operations. Refrigerant is metered using a highly responsive thermostatic expansion valve. System is controlled using an electronic temperature control, which provides improved pull down times, reduces compressor cycling and longer compressor life with lower energy consumption. Control system uses adaptive defrost to assure evaporator coil is free of ice and is operating at optimum efficiency. Evaporator condensate is eliminated using an energy efficient hot gas system. |
| Electrical | Standard electrical connections shall be 115V, 60 Hz single phase. A 10' cord and plug is supplied and attached to a junction box mounted on the exterior top of the cabinet. |
| Legs | Units are standard with painted metal legs and are 6" high with 1" adjustability. Shipped loose for field installation. |
| McCall reserves the right to make changes to the design or specifications without prior notice. |
|
|
